Description

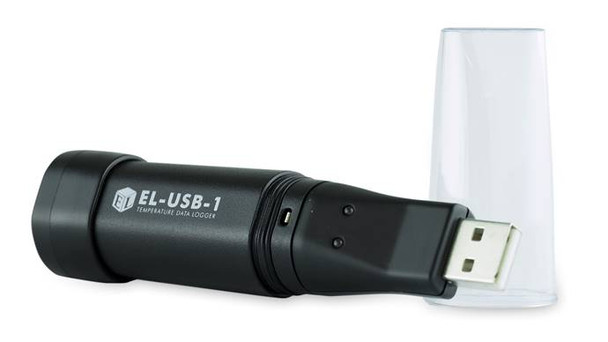

The EL-USB-1 data logger measures and stores up to 16,382 temperature readings from a temperature of -35°C to +80°C. The user can easily set up the logging rate and start-time, and download the stored data by plugging the module straight into a PC's USB port and running the purpose designed Windows software. Temperature data can then be graphed, printed and exported to other applications. The data logger is supplied complete with a long-life lithium battery, which can typically allow logging for a year. Status indication is via flashing red and green LEDs. The logger is protected against ingress from water and dust to IP67 standard when the plastic cap and seal are fitted.
Features:
USB Interface for Set-up and Data Download
User-Programmable Alarm Thresholds
Status Indication via Red and Green LEDs
Supplied with Replaceable Internal Lithium Battery and Windows Control Software
Environmental Protection to IP67
Model: EL-USB-1
Temperature Range: -35°C to +80°C
Internal Temperature Resolution: 0.5°C
Temperature Accuracy: 1°C
Minimum Logging Rate: Every 10 seconds until Memory is full
Maximum Logging Rate: Every 12 hours until Memory is full
Dimensions: 26mm dia x 98 length (mm)
