Description
These mini peristaltic pumps are widely used in laboratories where liquid is to be transferred quickly and accurately. Applications include cell culture media transfer, chromatography, chemical reagent dosing and filtration processes.
- 304 stainless steel compact design (anti-corrosion & resistant to rust)
- OLED display motor speed and working status
- Digital knob control speed
- Easy to use and operate
- Large range of tubing types available
- External control wiring terminal (isolation signal is 5-24V)
- Power-down memory function
External Control via:
- 0-5V, 4-20mA analogue signals control start/stop and speed
- RS485 and RS232 Communication
- MODBUS protocol

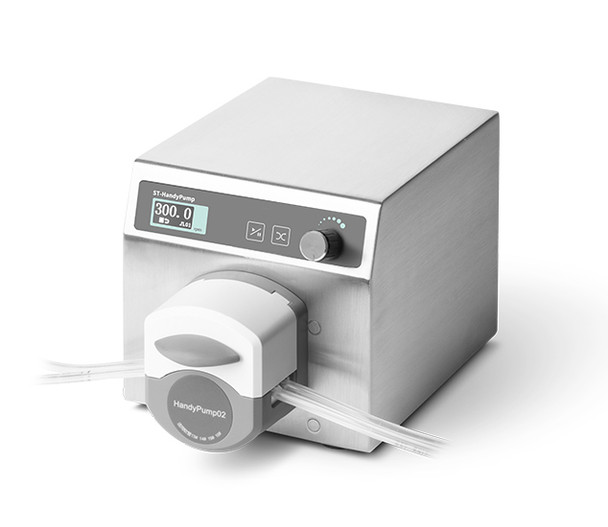

Model: HANDYPUMP-01
Flow Rate Single Channel (ml/min): 0.003 ~ 365ml/min Max
Speed Range (rpm): 0.1 - 300 (reversible)
Pump Head: HANDYPUMP01
Speed Control: Digital Knob
Display: 0.96” OLED
External Control: Start/Stop Direction Control (signal) and Speed Control
Comms Interface: RS485, RS232
Weight (g): 1700
Tubing sizes and flow rates:
13#
Tube size: 0.8×4mm (ID x OD)
Flow rate: 0.003~10ml/min
14#
Tube size: 1.6×4.8mm (ID x OD)
Flow rate: 0.018~56ml/min
19#
Tube size: 2.4×5.6mm (ID x OD)
Flow rate: 0.037~111ml/min
16#
Tube size: 3.1×6.3mm (ID x OD)
Flow rate: 0.063~190ml/min
25#
Tube size: 4.8×8.0mm (ID x OD)
Flow rate: 0.121~365ml/min
