Description
Digital Laboratory Overhead Stirrer Pack complete with Propeller Shaft and Stand.
This overhead stirrer is ideal for general applications where smooth, consistent stirring is required. This model features Digital Feedback Controller, exact RPM display, easy-to-set RPM and back lit LCD with bright visibility. All models feature a screw shaft chuck which allows users to easily interchange between stirring shafts.
High-spec Controller
- Digital Feedback Controller with the exact RPM control
- Jog dial switch easy-to-set RPM
- Back Light LCD with great visibility
- Easy to monitor variables
- Prevent the sample from splashing by applying the Slow Start/Stop function
- Rust-free long-term use with chromium coating Chuck
- Facility to adjustable impeller height
- High space efficiency with slim and compact design
- Motor overheating prevention
Product Components
- Main stirrer
- Support base, rod and clamp (Plate base 200×315 and rod 800 mm)
- Propeller stirring shaft supplied standard (dissolver and anchor types also available)
Specifications
Model: OSD-10
Capacity(water): 25 Litres
Max. Viscosity: 70,000 mPas
Max. Torque: 200 Ncm
Speed Range: 100 ~ 2000 rpm
Material: ABS and Aluminum
Max. Impeller Shaft Dia.: 10 mm
Display: Digital LCD with Back-Light
Timer: 99hr 59min
Safety: Overload & Heat Protector for Motor

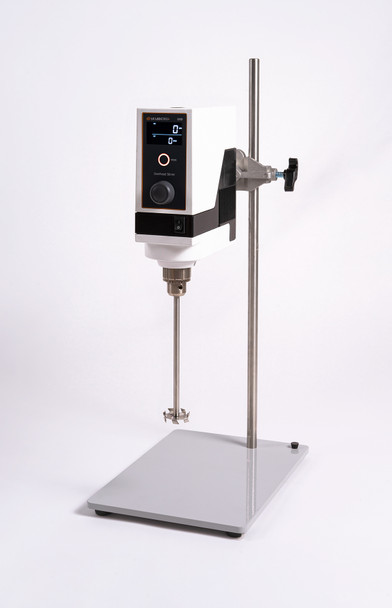

Picture: Shown with dissolver stirring shaft. Standard packs are supplied with propeller type stirring shaft. Anchor and dissolver type shafts are an optional extra.
